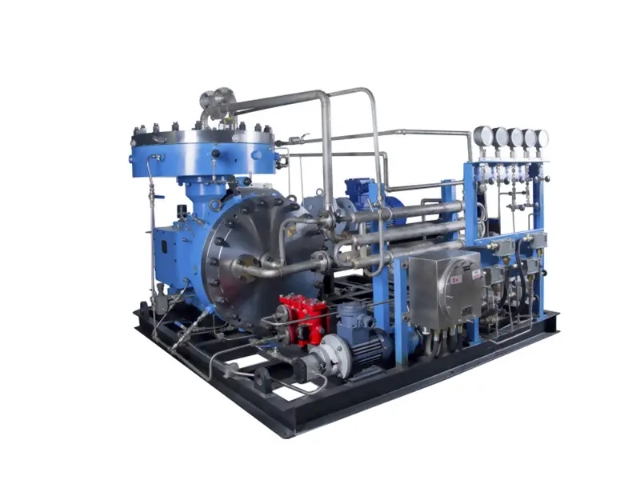

GL Series Diaphragm Compressor

Structure L type
Stroke 110mm~180mm
Max Piston Force 20KN~40KN
Max Discharge Pressure 100MPa
Flow Range 10~1000Nm3/h
Motor Power 7.5KW~90KW
Speed 420rpm

Model:
GL series diaphragm compressor

Availability:

Quantity:



Inquire Add to Basket

GL series diaphragm compressor

Product Description

GL Series Diaphragm Compressor Details:

structure: L type
stroke:110mm~180mm
max piston force:20KN~40KN
max discharge pressure:100MPa
flow range:10~1000Nm3/h
motor power:7.5KW~90KW
speed:420rpm
cooling method: air/water

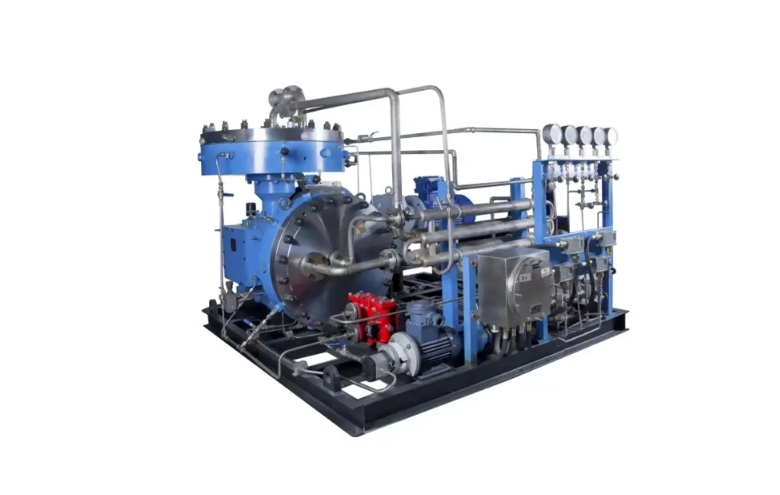

微信截图_20231208165615

GL series diaphragm compressor parameter table
	Model	Cooling water (L/h)	Flow (Nm³/h)	Inlet pressure (MPa)	Outlet pressure (MPa)	Dimensions L×W×H(mm)	Weight (kg)	Motor Power (kW)
1	GL-10/160	1000	10	Atmospheric	16	2200×1200×1300	1600	7.5
2	GL-25/15	1000	25	Atmospheric	1.5	2200×1200×1300	1600	7.5
3	GL-20/12-160	1000	20	1.2	16	2200×1200×1300	1600	7.5
4	GL-70/5-35	1500	70	0.5	3.5	2000×1000×1200	1600	15
5	GL-20/10-150	1500	20	1.0	15	2200×1200×1300	1600	15
6	GL-25/5-150	1500	25	0.5	15	2200×1200×1300	1600	15
7	GL-45/5-150	2000	45	0.5	15	2600×1300×1300	1900	18.5
8	GL-30/10-150	1500	30	1.0	15	2300×1300×1300	1700	11
9	GL-30/5-160	2000	30	0.5	16	2800×1300×1200	2000	18.5
10	GL-80/0.05-4	4500	80	0.005	0.4	3500×1600×2100	4500	37
11	GL-110/5-25	1400	110	0.5	2.5	2800×1800×2000	3600	22
12	GL-150/0.3-5	1100	150	0.03	0.5	3230×1770×2200	4200	18.5
13	GL-110/10-200	2100	110	1	20	2900×2000×1700	4000	30
14	GL-170/2.5-18	1600	170	0.25	1.8	2900×2000×1700	4000	22
15	GL-400/20-50	2200	400	2.0	5.0	4000×2500×2200	4500	30
16	GL-40/100	3000	40	0.0	10	3700×1750×2000	3800	30
17	GL-900/300-500	3000	900	30	50	3500×2350×2300	3500	55
18	GL-100/3-200	3500	100	0.3	20	3700×1750×2150	5200	55
19	GL-48/140	3000	48	0.0	14	3800×1750×2100	5700	37
20	GL-200/6-60	3000	200	0.6	6.0	3800×1750×2100	5000	45
21	GL-140/6-200	5000	140	0.6	20.0	3500×1380×2350	4500	55
22	GL-900/10-15	2500	900	1.0	1.5	3670×2100×2300	6500	37
23	GL-770/6-20	4500	770	0.6	2.0	4200×2100×2400	7600	55
24	GL-90/4-220	6000	90	0.4	22.0	3500×2100×2400	7000	45
25	GL-1900/21-30	3800	1800	2.1	3.0	3700×2000×2400	7000	55
26	GL-300/20-200	4200	300	2.0	20.0	3670×2100×2300	6500	45
27	GL-200/15-200	4000	200	1.5	20.0	3500×2100×2300	6000	45
28	GL-330/8-30	5000	330	0.8	3.0	3570×1600×2200	4000	45
29	GL-150/6-200	5000	150	0.6	20.0	3500×1600×2100	3800	55
30	GL-300/6-25	4500	300	0.6	2.5	3450×1600×2100	4000	45
