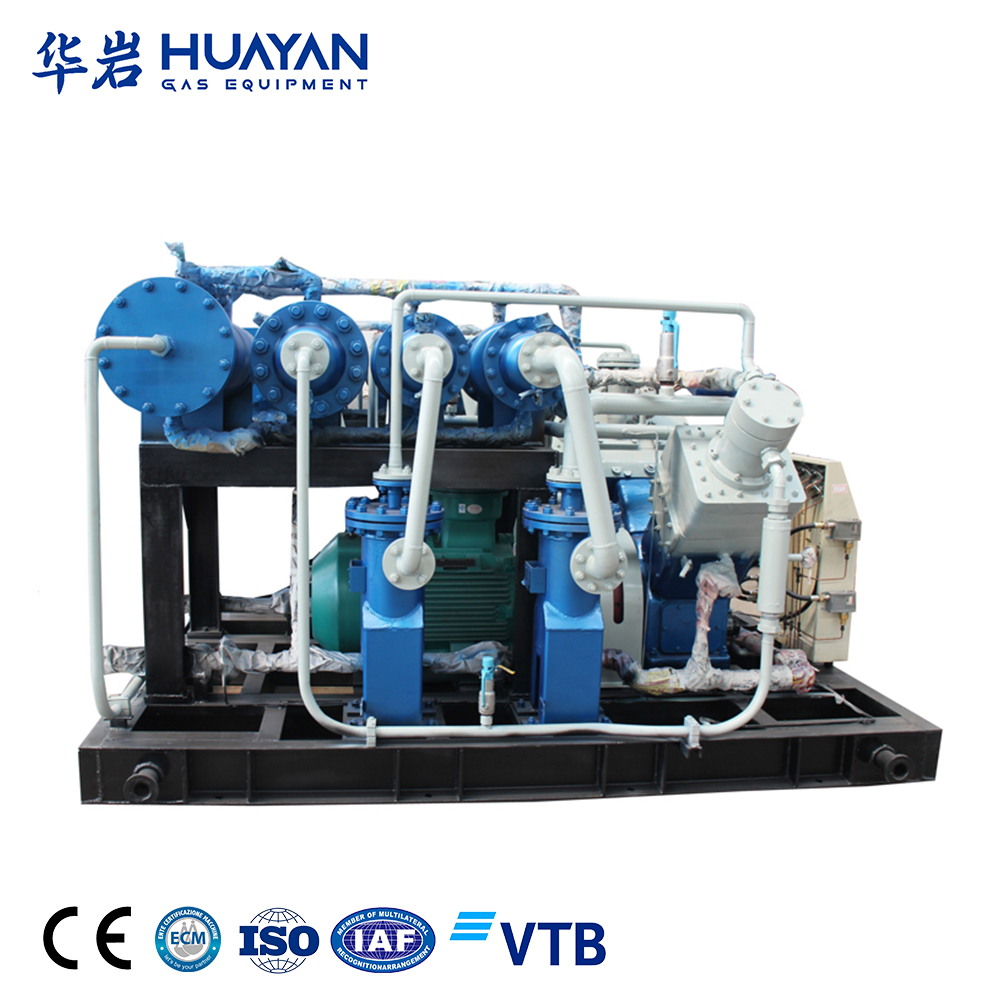

Butane Compressor

Butane Compressor – Technical Specifications, Features & Applications

Key Features:

✔ Explosion-Proof Design – ATEX-certified for safe handling of flammable LPG (Butane/C4H10)
✔ Oil-Free Compression – Eliminates hydrocarbon contamination (ISO 8573-1 Class 0)
✔ High Sealing Integrity – Dual mechanical seals & leak-proof gaskets
✔ Corrosion-Resistant – Stainless steel/316L wetted parts for wet gas service
✔ Energy Efficient – VFD options reduce power consumption by 25%

Technical Parameters:

• Flow Rate: 15-300 Nm³/h (Customizable)

• Pressure Range: 0.8-4.0 MPa (Standard), up to 15 MPa for CNG

• Motor Power: 5.5-160 kW (Explosion-proof ExdIIBT4)

• Cooling: Air/Water-cooled options

Primary Applications:

• LPG Bottling Plants – Cylinder filling & vapor recovery

• Refineries – Butane blending & loading/unloading

• Chemical Processing – C4 hydrocarbon transfer

• Energy Sector – NGL (Natural Gas Liquids) extraction

Compliance Standards:

◉ ATEX 2014/34/EU ◉ ASME B31.3 ◉ PED 2014/68/EU ◉ ISO 9001

(For hazardous area installations, specify Zone 1/2 classification requirements.)

Why Choose Our Butane Compressor?
→ 30% Longer Valve Life with tungsten-coated components
→ Smart Monitoring with IoT-enabled pressure/temperature sensors
→ Global Service with 24/7 technical support

Need a performance comparison table or case studies for your specific application? Contact our engineering team for customized solutions.
