"Heavy-Duty Ethane Compressor – Engineered for cryogenic gas processing & petrochemical applications, featuring -100°C operation, 5-30MPa pressure range, and API 618 compliance.
"Oil-Free Ethane Compressor – For ethylene plants & NGL recovery, with explosion-proof design, 50-3000Nm³/h flow, and ASME B31.3 compliance."

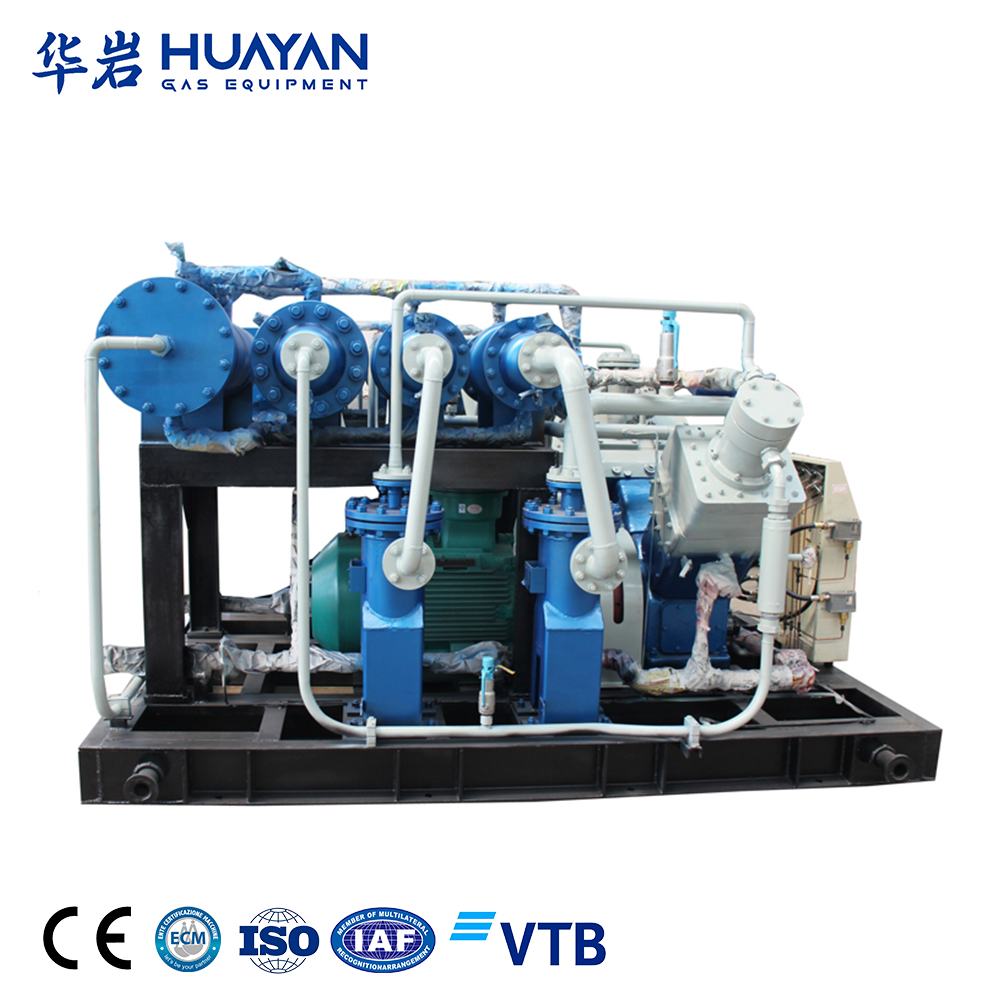

Ethane compressor
Huayan Gas
| Availability: | |
|---|---|
| Quantity: | |
Ethane Compressor – Technical Specifications & Industrial Solutions
✔ Cryogenic Capable
Operates at -100°C to +80°C with special alloy components
Double-sealed design for ultra-low temperature leakage prevention
✔ High-Pressure Performance
5–30 MPa working pressure (API 618 compliance)
Multi-stage compression with intercoolers for efficiency
Oil-free & dry gas compression (ISO 8573-1 Class 0)
316L stainless steel or Hastelloy wetted parts
✔ Explosion-Proof Safety
ATEX/IECEx Zone 1 certification (for ethylene-rich environments)
SIL-3 safety system compatibility
| Model Series | Flow Rate (Nm³/h) | Max Pressure (MPa) | Power (kW) | Cooling Method |
|---|---|---|---|---|
| EC-300 | 50–300 | 15 | 75–160 | Water-cooled |
| EC-1500 | 300–1500 | 25 | 200–500 | Hybrid cooling |
| EC-5000 | 1500–5000 | 30 | 500–2000 | Forced-air |
① Petrochemical Industry
Ethylene cracker plants (C2 recovery & recycling)
NGL (Natural Gas Liquids) fractionation
② LNG & Energy Sector
LNG liquefaction pre-cooling
Ethane storage & transportation
③ Specialty Gas Production
High-purity ethane for semiconductor manufacturing
Laboratory gas supply systems
◉ API 618 (Reciprocating compressors for petroleum industries)
◉ ASME B31.3 (Process piping)
◉ PED 2014/68/EU (Pressure equipment directive)
◉ ISO 16901 (Guidelines for hydrocarbon gas handling)
For Ethylene Plants → EC-1500 with 20MPa + gas purification
LNG Terminals → EC-300 with -100°C cryogenic package
High-Purity Applications → Electropolished internals + particle filters
✅ 30% Longer Valve Life with tungsten-carbide coatings
✅ Predictive Maintenance via IoT vibration monitoring
✅ Global Compliance (Adaptable to US/EU/ME standards)
