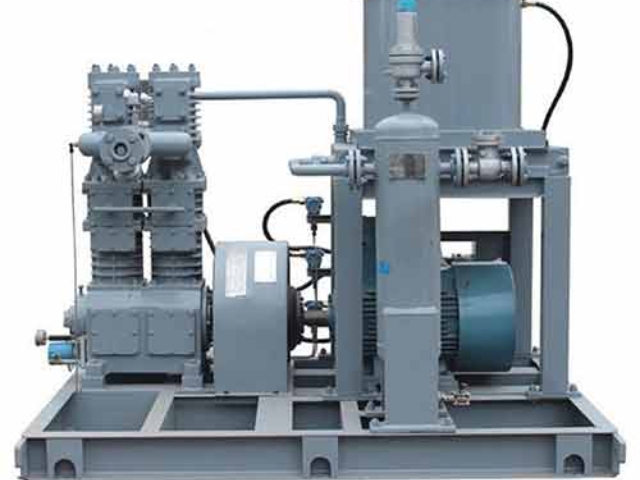

The BOG (boil-off gas) serves as valuable flash gas that can be harnessed efficiently. By compressing the BOG to a specific pressure using a compressor, it can be channeled directly into the municipal gas network or further compressed to 250 kg to supply a compressed natural gas (CNG) station.
There are four fundamental categories of BOG recovery compressors, classified based on their flow rates under standard operating conditions: they are available in capacities of 100Nm3/h (ranging from 50 to 150Nm3/h), 300Nm3/h (from 200 to 400Nm3/h), 500Nm3/h (between 400 and 700Nm3/h), and 1000Nm3/h (spanning 800 to 1500Nm3/h).
| Model | Medium | Flow-rate(Nm3/h) | IntakePressure (MPa) | Exhaust Pressure(MPa) | |
| 1 | ZW-4/0.5-5 | BOG | 300 | 0.05 | 0.5 |
| 2 | ZW-4.0/(1-5)-6 | BOG | 400~1200 | 0.1~0.5 | 0.6 |
| 3 | ZW-0.32/(2-6)-10 | BOG | 50~110 | 0.2~0.6 | 1.0 |
| 4 | ZW-0.32/(3-5)-40 | BOG | 60~100 | 0.3~0.5 | 4.0 |
| 5 | ZW-0.55/6-250 | BOG | 200 | 0.6 | 25.0 |
| 6 | DW-12/2 | BOG | 600 | Normal | 0.2 |
| 7 | ZW-6/(2-6) -7 | BOG | 900~2000 | 0.2~0.6 | 0.7 |
| 8 | VW-14/(1-3)-4 | BOG | 1400~2900 | 0.1~0.3 | 0.4 |
| 9 | ZW-4/(1-6)-7 | BOG | 400~1400 | 0.1~0.6 | 0.7 |
| 10 | ZW-4/(1.5-6)-8 | BOG | 500~1400 | 0.15~0.6 | 0.8 |
| 11 | ZW-2.5/(0.5-4)-(3.5-7) | BOG | 190~640 | 0.05~0.4 | 0.35~0.7 |
| 12 | ZW-0.45/(10-40)-40 | BOG | 250~950 | 1.0~4.0 | 4.0 |
| 13 | ZW-0.4/6-10 | BOG | 140 | 0.6 | 1.0 |
