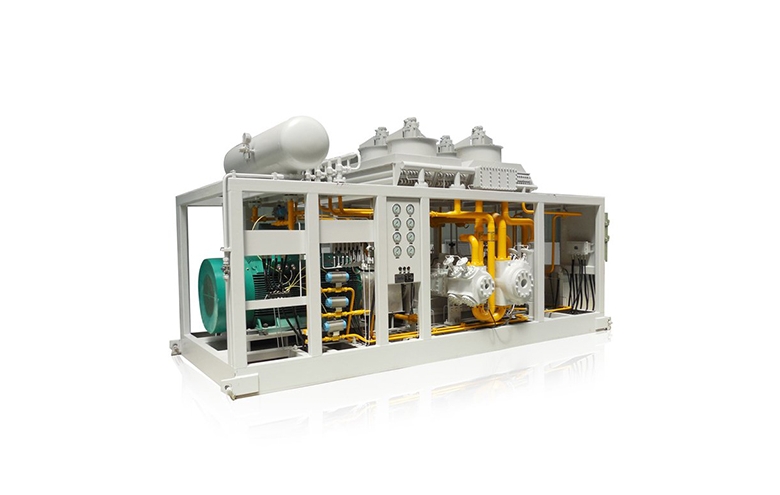

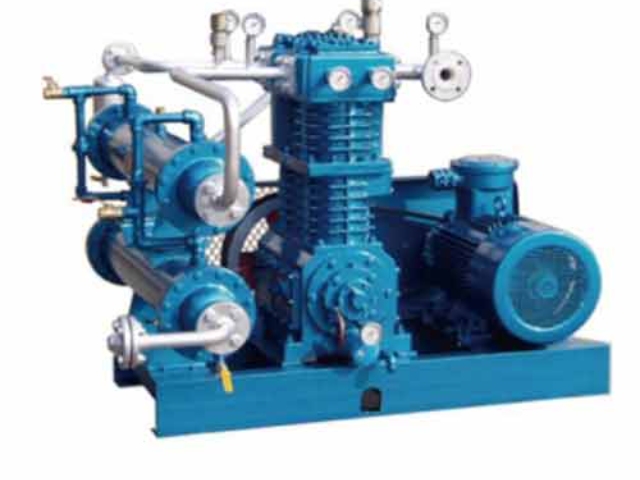

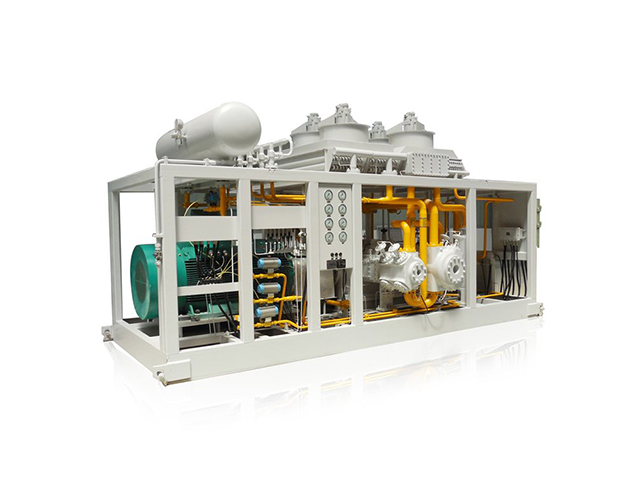

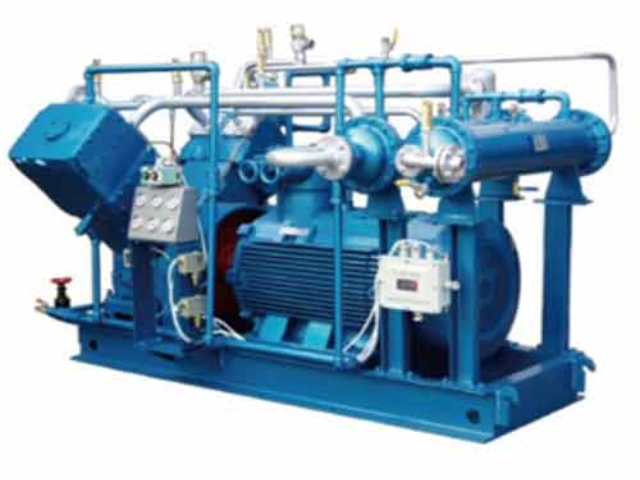

Our company specializes in manufacturing nitrogen compressors, which stand as our flagship product with well-established technology and robust stability. The product line predominantly consists of large and medium-sized compressors designed for natural gas applications. These units can deliver exhaust pressures that vary from 0.1MPa to a substantial 25.0MPa, with displacement capabilities ranging from 0.05m³/min to 20m³/min.
We offer an array of compressor configurations to cater to diverse requirements, including Z-type, D-type, V-type, and W-type models. Additionally, for environments that demand heightened safety measures, we provide explosion-proof nitrogen compressors to ensure safe operation under potentially hazardous conditions.
The entire unit is characterized by its durability, providing a long operational lifespan, ample gas output, and ease of maintenance.
This compressor sees broad application in various tasks, such as boosting pressure in nitrogen generator systems, purging processes in chemical facilities and gas units, filling nitrogen cylinders, and nitrogen well injection, to name a few.
| Partial nitrogen piston compressor product specifications | ||||||
| Model | Flow-rate (Nm³/h) | Intake pressure (MPa) | Exhaust pressure (MPa) | Rotating speed (Rpm) | Motor Power (Kw) | |
| 1 | ZW-0.6/2-25 | 90 | 0.2 | 2.5 | 740 | 30 |
| 2 | ZW-1.5/1-12 | 180 | 0.1 | 1.2 | 730 | 22 |
| 3 | ZW-1.4/2-40 | 250 | 0.2 | 4 | 740 | 37 |
| 4 | ZW-1.3/4-25 | 340 | 0.4 | 2.5 | 980 | 37 |
| 5 | VW-7.2/2.5-6 | 1200 | 0.25 | 0.6 | 980 | 45 |
| 6 | VW-15/0.5-3 | 1200 | 0.05 | 0.3 | 980 | 75 |
| 7 | VW-9.7/1-10 | 1100 | 0.1 | 1.0 | 985 | 110 |
| 8 | VW-7.2/1-22 | 800 | 0.1 | 2.2 | 985 | 132 |
| 9 | DW-1.2/2-150 | 400 | 0.2 | 15 | 740 | 45 |
| 10 | DW-0.5/20-160 | 600 | 2.0 | 16 | 740 | 75 |
| 11 | DW-3.8/10-45 | 2300 | 1.0 | 4.5 | 740 | 185 |
| 12 | DW-11/4-20 | 3000 | 0.4 | 2.0 | 740 | 250 |
